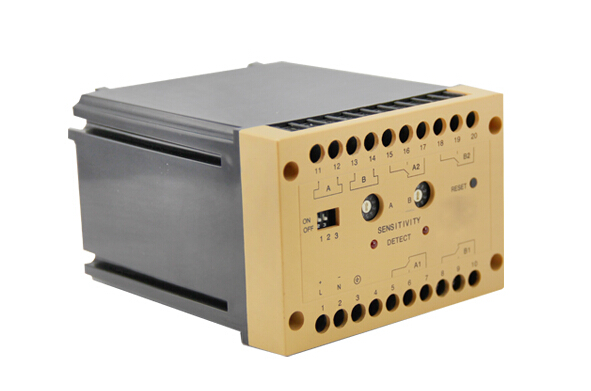

ILD-600 Vehicle Double Loop Detector


  • ILD-600 Vehicle Double Loop Detector 点击放大

Product description

ILD-600 Vehicle Single Loop Detector





IVD-600 is used for wherever vehicles have to be detected, for example for monitoring and safe-guardingaccessways or for counting vehicles. The output signal can be used for controlling door and gatedrive mechanisms, operating barriers, controlling traffic light systems or activating card dispensers in parking lots. It uses the advanced microprocessor technology, and can work in diverse environments.

IVD-600 has two-way output relays. One is unlimited output when loop is permanently coveredwhile the other is multi-mode that can be set by users.



Technical data



Operating voltages:           220V AC±10%

Power consumption:         5W

Output:                            Relay output

Frequency range:             20kHz to 170kHz (4 grades adjustable)

Reaction time:         20 ms

Sensitivity:                       10 grades adjustable

Loop inductance:             Ideal 100300µH (include connecting wiring)

                                        Max 50µH1000µH (include connecting wiring)

Loop conn. Wiring:          Max. 100m, twisted at least 20 times per meter, total resistance <10 Ohm

Operating temp.:             -30℃ to +75℃

Storage temp.:                -40℃ to +85℃

Relative humidity:            ≤ 95%

Connection:                    11-pin socket

Shell:                               PC + ABS engineering plastics

Installation:                      DIN rail

Dimensions:                    110×60×100 mm (L×W×H)

Net Weight:                    400g (include socket)
